Tag Archives: 2°C guardrail

Climate clippings 171

1. 3D solar towers

MIT researchers have developed and tested a range of 3D solar towers to achieve power output that is up to 20 times greater than traditional fixed flat solar panels with the same base area. Here is an example of two of the models tested: Continue reading Climate clippings 171

Saving the planet

At the Paris climate conference a surprise result was for the world to aim to hold “the increase in … temperature to well below 2°C … and to pursue efforts to limit the temperature increase to 1.5°C”.

Fred Pearce in the New Scientist now takes a look at what some are saying needs to be done. Continue reading Saving the planet

Mobilising to effect transformative climate change

There’s a new kid on the block in terms of climate activism – called The Climate Mobilization or TCM for short. Climate Code Red has reprinted a long and wordy post, The transformative power of climate truth. In fact they are dedicated to vigorous and direct action targeted at political candidates and politicians within the US context. Their raison d’etre is best stated on their Pledge to mobilize: Continue reading Mobilising to effect transformative climate change

Two degrees

Carbon Brief has compiled a series of three posts on the so-called 2°C ‘guardrail’ used in global warming discourse:

This post will pick out some of the highlights, but is not a substitute for reading the posts.

The history of two degrees

To me there have been four critical events:

  • From 1975 Yale economics professor William Nordhaus suggested that warming of more than two degrees would push the climate beyond the limits humans were familiar with.
  • In 1990 a team of researchers from the Stockholm Environment Institute (SEI) attempted to define what constituted dangerous climate change. They suggested two degrees.
  • In 1996 the European Council of environment ministers declared that “global average temperatures should not exceed 2 degrees above pre-industrial level”.
  • At the Conference of Parties of the UNFCCC in Cancun in 2010 governments committed to “hold the increase in global average temperature below 2°C above pre-industrial levels.”

Notably the SEI in 1990 was nuanced and cautious:

Based on scientific understanding at the time, SEI suggested that to avoid the worst impacts of climate change, a limit should be set at two degrees. But, the report warned, the higher the temperature rise, the bigger the risks from climate change.

“Temperature increases beyond 1.0°C may elicit rapid, unpredictable, and non-linear responses that could lead to extensive ecosystem damage,” the report said, suggesting there is nothing necessarily ‘safe’ about a two degree limit. (Emphasis added)

In their view 2°C was not a guardrail where it was safe on one side and dangerous on the other. In my view the notion of a ‘guardrail’ is majorly misleading.

Can we avoid dangerous climate change?

The distilled wisdom is that we have a historical emissions budget of 2,900 billion tonnes of carbon dioxide if we are to have a 66% chance of staying below two degrees. We’ve used up 1,900 of that budget so the remaining budget is 1000 billion tonnes. At current rates we’ll use up that budget in 21 years. Unfortunately emissions are increasing.

If emissions were to peak today they would need to start falling at 5.5% per year from tomorrow, in order to achieve a 66% chance of staying within a two degrees increase. France managed 5% per year for half a decade at the height of its 30-year shift to nuclear, during which it went from one per cent nuclear-powered to 80%. That kind of effort would be required worldwide on average for decades.

Increasingly the assumption is that we need to reach zero net emissions around 2055 to 2070 and then go net negative, using technology that has not yet been developed.

The article canvasses a number of stabilisation strategy scenarios and includes this interesting map of electricity generation change required by 2040 from the International Energy Association’s World Energy Outlook 2014:

energyoutlookmaplogo_600

The message is that the investment in renewables needs to be massive. Coal must reduce in the US, the EU and China, but could increase elsewhere, substantially so in India. Everyone will use more gas.

I would query the role of gas as a transition technology for two reasons. Firstly, I think we need to decarbonise so rapidly that gas would need to be phased out before an adequate return on investment is achieved. Secondly, I’m concerned about its true greenhouse effectiveness, because of fugitive emissions in production, transmission and usage, and because I think the greenhouse impact of methane is underestimated.

It’s no surprise that I would also query the accepted wisdom about the remaining carbon budget. A one third chance of failure is unacceptable, David Spratt points out that if we want a 90% chance of success there is no carbon budget left.

I agree with the article that we should never call “game over” in climate mitigation efforts.

See also my post The UNEP Emissions Gap Report: a failure of ambition.

What happens if we overshoot two degrees?

There is much uncertainty about the specifics, but this mega graphic gives the overall impact of four degrees as against two degrees in four aspects:

ar5globalimpacts_600

The article says that change should be seen as a continuum rather than as a precipice. I’d agree, but I think we should assume that a precipce that we can’t see is there and the chances of meeting up with it increase as the temperature increases. In short, the more warming we have the more we are likely to trigger tipping points that make the climate less stable.

I have a massive query with this statement:

Global temperature has risen 0.85 degrees Celsius since 1880, according to the latest report from the Intergovernmental Panel on Climate Change (IPCC).

We could be due another couple of tenths on top of that as past emissions take a decade or so to reach their full effect warming. Together with current and expected emissions we’re essentially already committed to about one degree of warming, scientists estimate.

The article cites one study that sees warming effects flowing through in about a decade. I suspect that only short-term feedbacks are being considered.

David Spratt’s paper Is climate change already dangerous? says:

And the IPCC (2007) Synthesis report (Table 5.1 on emission scenarios) also shows that for levels of greenhouse gases that have already been achieved (CO2 in the range of 350–400 ppm,CO2e in the range 445–490 ppm) and peaking by 2015, the likely temperature rise is in the range of 2–2.4°C.

I’ll finish with a reminder that the Swedes got it right – two degrees does not mean a safe climate.

See also my The folly of two degrees: Climate Code Red.

The folly of two degrees

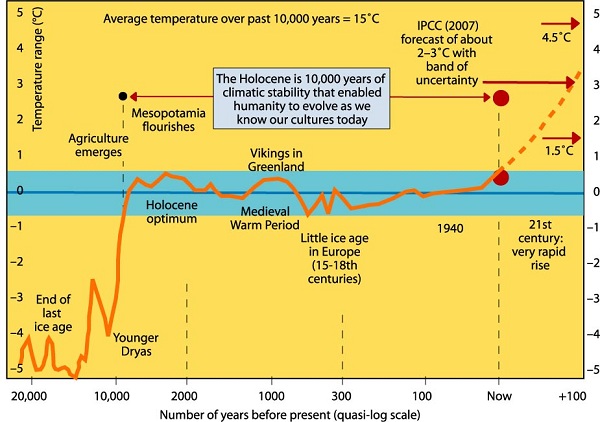

Back in 2011 David Spratt took a look at where we were in relation to temperature rise and the Holocene. At 2000 we were at 0.7°C above the pre-industrial temperature. This happens to coincide with the Holocene maximum:

Holocene_thin-blue-line 600

Spratt says James Hansen warns that at 0.7°C the ice sheets start to become unstable, so in terms of sea level rise alone we are entering a danger zone. Since then the temperature has risen ~ 0.15°C.

From this point of view the 2°C guardrail looks hazardous in the extreme. Continue reading The folly of two degrees

A failure of ambition: the UNEP Emissions Gap Report:

Cover_cropped_175

The United Nations Environment Programme (UNEP) has published its Emissions Gap Report 2014 a couple of weeks before the UN Conference on Climate Change in Lima, Peru. The latter is the annual UNFCCC Conference of Parties (COP), the penultimate one before the 2015 conference in Paris where, with a bit of luck, legally binding medium and long-term targets will be set for each country for emissions reduction. Each year since Copenhagen in 2009 the UNEP has reported on the gap between explicit pledges made by member states and what is required to have a likely (67%) chance of the planet staying within the 2°C guardrail. This is a necessary activity, because since Copenhagen each country determines its own targets within a framework of “common but differentiated responsibility”, which is a bunch of words that effectively allow each country to do as it pleases.

Someone needs to keep a tally as to what all this voluntary activity adds up to. UNEP had taken on that role.

The UNEP report takes note of and is broadly consistent with the IPCC Synthesis Report. Hence it accepts the IPCC ‘budget approach’ which states that we have already emitted 1,900 gigatonnes of carbon dioxide (Gt CO2) from an allowable budget of 2900 Gt since the dawn of the industrial era, leaving an estimated remaining budget of just 1,000 gigatonnes of carbon dioxide (Gt CO2). That’s roughly 20 years worth of emissions at the current rate.

Whereas the IPCC has given a range of scenarios, (scientists giving a range of options to policy makers) the UNEP has plotted just one which sees us peaking within about 10 years, halving CO2 emissions by 2050 and reaching net zero thereafter, they say between 2055 and 2070.

Net zero implies that some remaining CO2 emissions could be compensated by the same amount of carbon dioxide uptake, or ‘negative’ emissions, so long as the net input to the atmosphere due to human activity is zero, the report finds.

Because this scenario involves overshoot we will have to have net negative emissions during the last decades of the century. The less we act now the harder it gets later, as illustrated here:

Carbon neutrality_cropped_600

Hopefully this will sink into the brains of those attending the Lima conference, and more importantly the brains of their masters back home.

UNEP have done the sums and find that emissions in 2020 should not be higher than 44Gt CO2e to have a 67% chance of staying within
the 2°C target. If countries honour their current pledges we are heading for 52–54 Gt CO2e in 2020, leaving a gap of 8–10 Gt CO2e.

UNEP then looked at whether countries were on track to honour their pledges.

After reviewing available evidence from the G20 (with the EU 28 taken as a group) it appears that five parties to the United Nations Framework Convention on Climate Change – Brazil, China, the EU28, India and the Russian Federation – are on track to meet their pledges. Four parties – Australia, Canada, Mexico and the USA – are likely to require further action and/or purchased offsets to meet their pledges, according to government and independent estimates of projected national emissions in 2020. Conclusions are not drawn for Japan, the Republic of Korea, Indonesia and South Africa because of various uncertainties, nor for Argentina, Turkey and Saudi Arabia because they have not proposed pledges.

In 2010 we were at 49Gt CO2e; in 2020 we are likely to be at 55 Gt CO2e. The broad situation out to 2030 is represented as follows:

Emissions gap_cropped_600

I take it that our current form will get us to 56 to 59 Gt CO2e (grey), whereas we should at the very least be at 42 Gt CO2e (in the orange zone).

The gap is still widening.

There are several comments that need to be made.

First, the UNEP calculations would not have taken on board the China-US agreement. As stated in that post, Climate Interactive worked out that if other countries matched the US-China effort the following stabilisation scenario would ensue:

China-deal-600

For the first time we have a prospect of peaking emissions, but this does not come within a bulls roar of zero emissions in the second half of this century. The current level of ambition is lamentably lacking.

Secondly, and admirably, the UNEP report takes into account all greenhouse gases from all sources, calculated in terms of CO2 equivalent. Too often scientific reporting is limited to fossil fuel emissions.

Thirdly, the report is conceived within a framework that is irresponsible, bordering insane. A 67% chance of not breaching the 2°C guardrail represents lousy odds when we are dealing with the viability of major ecosystems on the planet and the future of civilisation.

The 2°C guardrail itself is now clearly inappropriate, when, for example as I explained in this post and elsewhere that preserving more than 10% of coral reefs worldwide in 2100 would require limiting warming to below 1.5°C.

The World Bank report Turn down the heat contains examples like this:

In Brazil, at 2°C warming, crop yields could decrease by up to 70 percent for soybean and up to 50 percent for wheat.

The scientists from the Potsdam Institute for Climate Impact Research and Climate Analytics who put that report together for the World Bank are telling it like it is. Sadly the international array of scientists and others involved in the UNEP report (plenty of Germans but none I can see from Potsdam) are making concessions to what they think will be politically acceptable and doable, as, unfortunately, does the IPCC report.

The stakes are too high for such dissembling diplomacy!

Update: Len @ 1 asked:

It would be nice to at least know what level of action is needed to reach a 95% level surety. Is this stated anywhere?

Back in 2008 James Hansen told us that we had already overshot and that in the first instance we should get concentration levels down to 350 CO2e. Hower, he seems to be about a decade ahead of the bulk of the scientific/political community concerned with climate change. The 2°C guardrail had been invented by the Germans in the 1990s and was accepted by the UNFCCC process as a desirable aim in Copenhagen in 2009. Since then it has become the ‘widely accepted standard’ we should aim at. As such it provides the framework within most climate mitigation scientists work.

The IPCC Fifth Assessment report (AR5) (my post on the Synthesis Report here – see second table) did not look at stabilisation scenarios aiming at less than 450 ppm CO2e. They have a column for <430 but didn't fill it in, because of a lack of studies in the scientific record. The IPCC relies on studies in the scientific literature, with a cutoff of about December 2012, and insufficient studies were available for them to fill in the numbers. So the failure is with the scientific community, sadly. I can give you two pointers. The first is this wondrous graph which I first picked up in The Climate Authority Review of targets:

Stabilisation probabilities_croppedb_580

The graph has Malte Meinshausen’s name on it. He was at the time at the Potsdam Institute, I believe he is now at the University of Melbourne. His work is excellent.

From the graph you can see that 350 ppm will only get you about a 95% chance of staying below 2.5°C, not 2°C.

If you want a 1.5°C climate you need about 320 ppm. We are currently at 480 ppm CO2e.

It is notable that David Spratt and Philip Sutton wrote in 2008 that we should be aiming at 320 ppm. Spratt blogs at Climate Code Red, where under Publications you will find a book by the same name which was originally published online in 2008 as The Big Melt written in response to the astonishing Arctic melting in 2007, since easily surpassed in 2012. Spratt is a science writer rather than a scientist, and consistently publishes critiques of the mainstream approach, as I picked up, for example in The game is up, where he says:

We have to come to terms with two key facts: practically speaking, there is no longer a “carbon budget” for burning fossil fuels while still achieving a two-degree Celsius (2°C) future; and the 2°C cap is now known to be dangerously too high.

He concludes that there is no longer a non-radical option, only one path remains viable: the emergency ‘war economy’ mode.

Climate Code Red identifies practical strategies we need to adopt.

The Australian group Beyond Zero Emissions consistently publish material on rapid decarbonistaion. My mate John Davidson has investigated them more than I have and regards them as sound. I hope to post on one of their reports soon.

Elsewhere Kevin Anderson from the UK is worth keeping an eye on. See his personal site and Real clothes for the emperor.

Professor John Wiseman, Deputy Director of the Melbourne Sustainable Society Institute at the University of Melbourne looked at the shape of climate policy for the future for the Centre for Policy Development. See Climate change: reconnecting politics with reality. He has an appropriate sense of urgency and sets out the specific strategies we need to adopt in Australia for rapid decarbonisation. He, for example, sees the need for 100% renewables in 10 years.

People like Spratt, Anderson, Wiseman and BZE are all looking for “the achievement of emission reductions at the necessary scale and speed [which] will require transformational rather than incremental change”. The war analogy is not inappropriate. Abbott would have us fiddle while Rome burns. His approach is essentially one of tokenism. You run a climate mitigation program off to one side in order to have one on your books, at the least expense you can get away with. It’s essentially a sop to the electorate which doesn’t interrupt your central vision of the generation of wealth based centrally on the fossil fuel industry.

This is delusional – see The folly of Galilee basin coal.

Real clothes for the emperor

“When I look at this [CO2] data, the trend is perfectly in line with a temperature increase of 6 degrees Celsius, which would have devastating consequences for the planet.” Fatih Birol, IEA chief economist

That’s one of the favourite quotes by Professor Kevin Anderson of Manchester University and the Tyndall Centre (personal website here) who, like James Hansen in the US and John Schellnhuber in Germany, is a leading climate scientist who speaks plainly about the dangers of global warming and the situation we’re in. Much of his important work seems to have been done with Alice Bows, now Bows-Larkin. In this piece I’ll refer to “he” or “they” depending on my perception of the source.

Real clothes for the emperor was the title of a talk Anderson gave to unionists in June 2013 (slides here).

Their basic point is that no real progress has been made since the Rio Summit in 1992 from which international action flowed through the agency of the UNFCCC and the IPCC. Policy makers in nations with ostensible targets seriously fudge the game so that economic growth is not inconvenienced.

Another favourite quote of theirs is:

“… dangerous climate change can only be avoided if economic growth is exchanged, at least temporarily [until low carbon energy supply is widespread], for a period of planned austerity within Annex 1 nations…” – Anderson and Bows, 2011

I’ll proceed by stating their main summary points in turn followed by a brief explanation. Continue reading Real clothes for the emperor

Assessing dangerous climate change

Seventeen high-profile academics with expertise across the climate research spectrum, from atmospheric science, earth science and environmental science, to economics, global change and public health led by James Hansen, now at Columbia University’s Earth Institute, have published a paper Assessing “Dangerous Climate Change”: Required Reduction of Carbon Emissions to Protect Young People, Future Generations and Nature which demands attention.

The bottom line is that “aiming for the 2°C pathway would be foolhardy” because it “would have consequences that can be described as disastrous”. The authors believe that humanity and nature, the modern world as we know it, is adapted to the Holocene climate that has existed more than 10,000 years. Departing from this climate by more than 1°C would have intrinsically harmful effects. At 2°C these effects become unacceptably severe. Moreover we enter a zone where further feedbacks, such as ice sheet response, methane release and vegetation change, are likely to push the climate towards further warming, of probably at least 3°C.

James Hansen and Pushker Kharecha have done a summary with discussion here, then there’s Joe Romm at Climate Progress, Tim Radford at Climate Code Red, Damian Pattinson, Editorial Director, PLOS ONE, at Huff Post and John Rennie with links to further material at PLOS Blogs. My partial summary is below. Continue reading Assessing dangerous climate change
